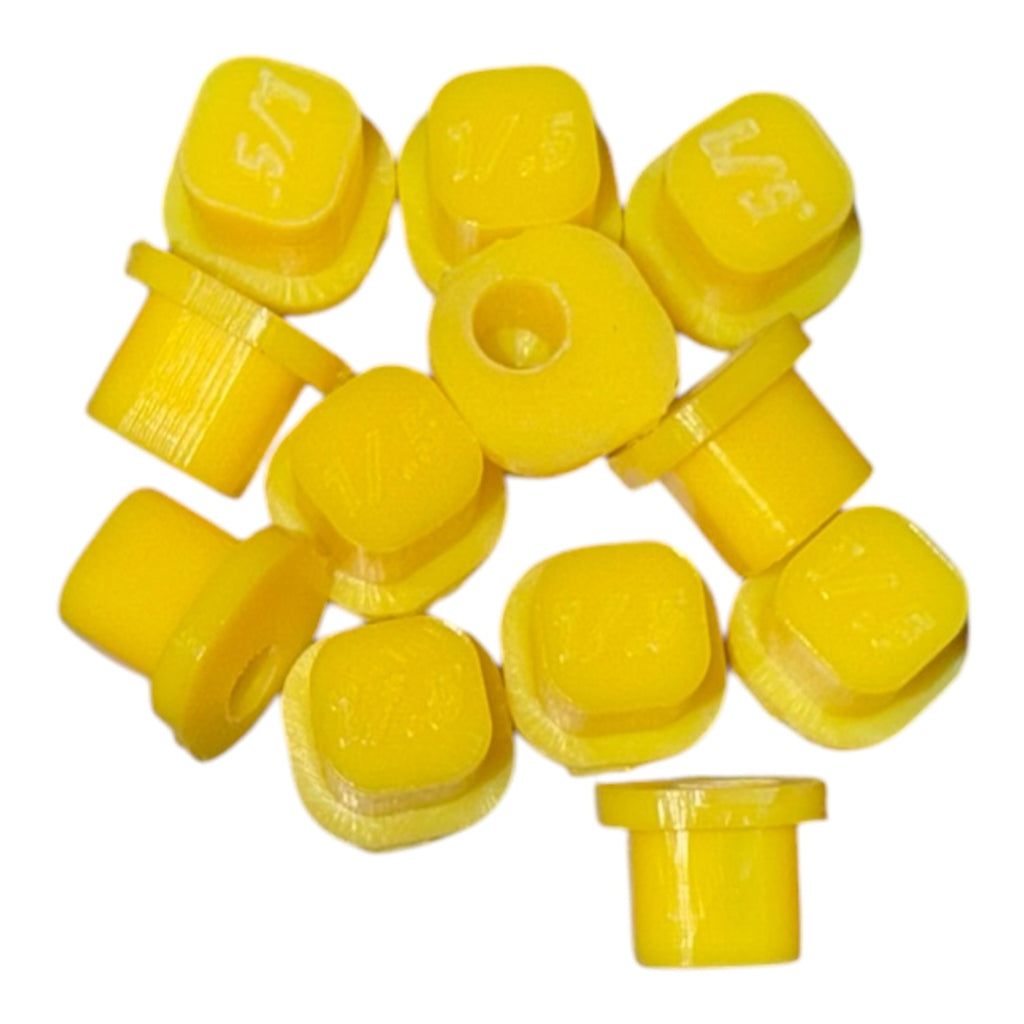

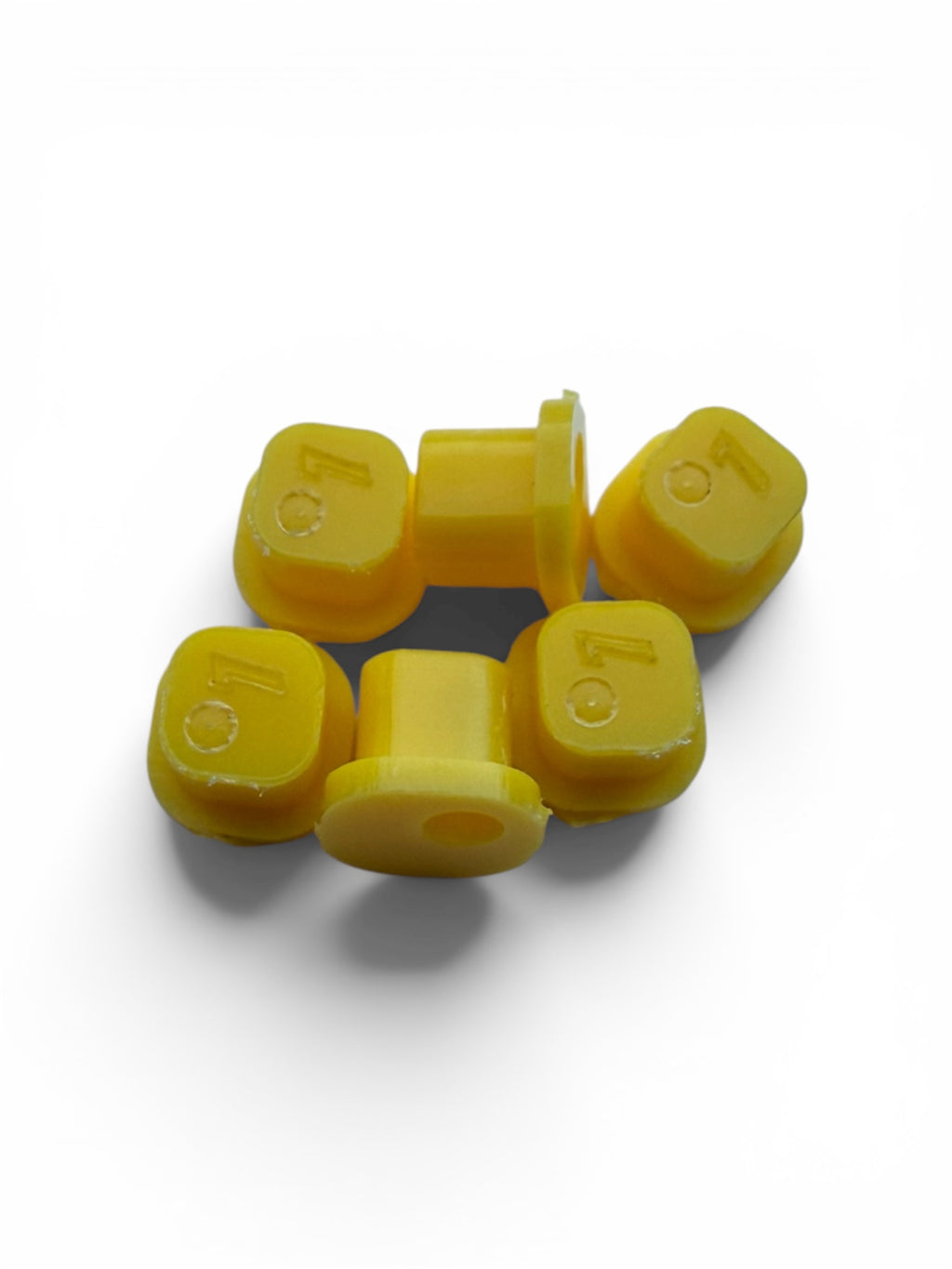

Xray 1/10 Delrin Pivot Block Pills (.5/1 & 1/.5)

Upgrade your Xray 1/10 setup with machined Delrin pivot block pills. These pills provide increased hole durability and maintain a more consistent fit over time, giving your car more reliable and repeatable handling.

These are our previously unreleased .5/1 and 1/.5 pill combinations, designed to give racers more precise suspension setup options than standard pills allow.

Why These Pills?

These new offset combinations let you make finer geometry adjustments without compromising other critical settings.

Example:

If you're running 1 Down in the C Block and 1 Down in the D Block on clay, you have 2° Anti-Squat and want to increase rear toe to 3.5°.

Previously, your options were to:

Run Down 1 / .5 Down and Out, which reduced Anti-Squat to 1.5°, or
Raise the rear roll center by changing to Center C / .5 Out D.

With these new pills, you can:

Keep the C Block at 1 Down
Change the D Block to 1 Down / .5 Out
Maintain 2° Anti-Squat
Achieve 3.5° Rear Toe

This allows for more accurate tuning while keeping your desired suspension geometry intact.

Installation

These pills must always be used as a matched pair:

One .5/1 pill
One 1/.5 pill

The easiest way to identify them is by looking at the pill slot—the slot clearly indicates which side is the 1 mm offset and which is the 0.5 mm offset.

If you have any questions about installation or setup, send us a message on Facebook and we'll be happy to help with setup recommendations.
